Flow-X Ground Wiring

Ground wiring The Flow-X flow computer uses the following separate ground connections:

one common ground for the power supply and the digital signals ('0 V')

one isolated common ground for the analog inputs ('Analog input common')

one isolated common ground for the analog outputs ('Analog output common')

chassis ground (through the chassis grounding screw)

The separate common ground for analog inputs and analog outputs accommodate for applications with isolated (floating) analog signals.

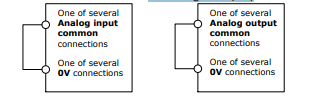

If no isolated analog signal ground is available, then the analog input and/or output common ground must be connected to the common ground (0 V)
