How to print a snapshot report on startup in Flow-X
PRINT A SNAPSHOT REPORT ON STARTUP IN FLOW-X
This document describes how to generate a snapshot repot whenever the Flow-X flow computer starts up for any reason.

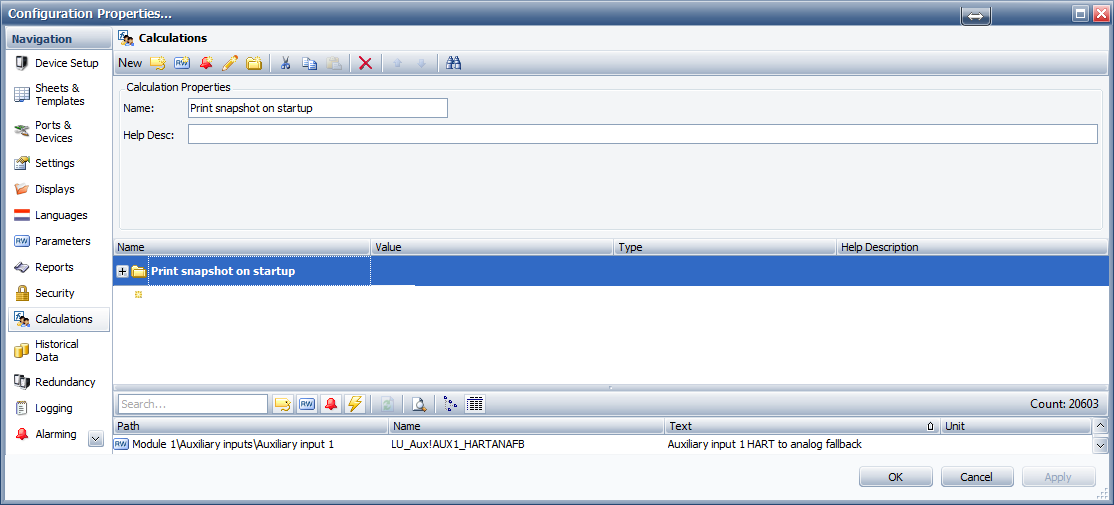

Define a new Calculation group

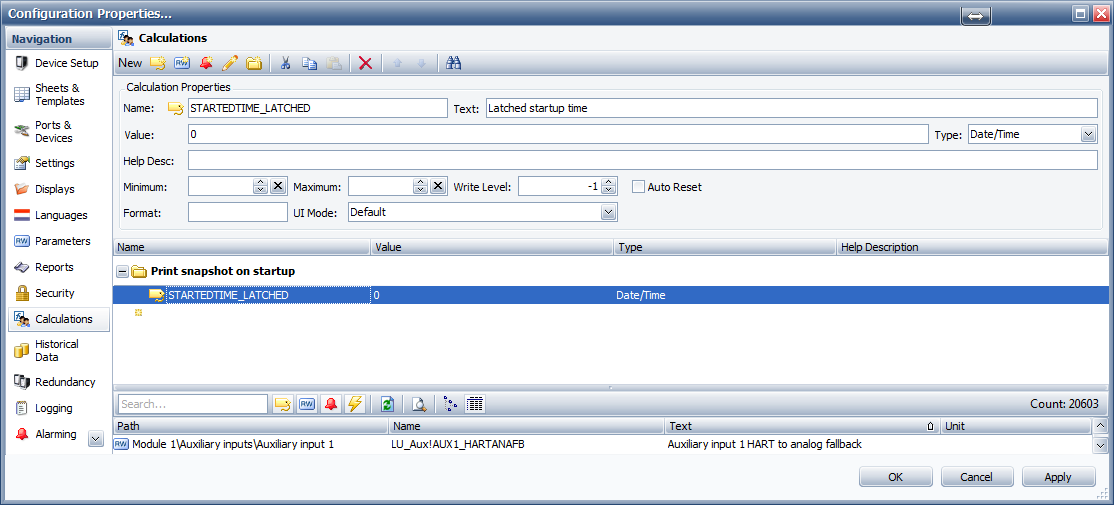

- Define a new tag to latch the latest startup time

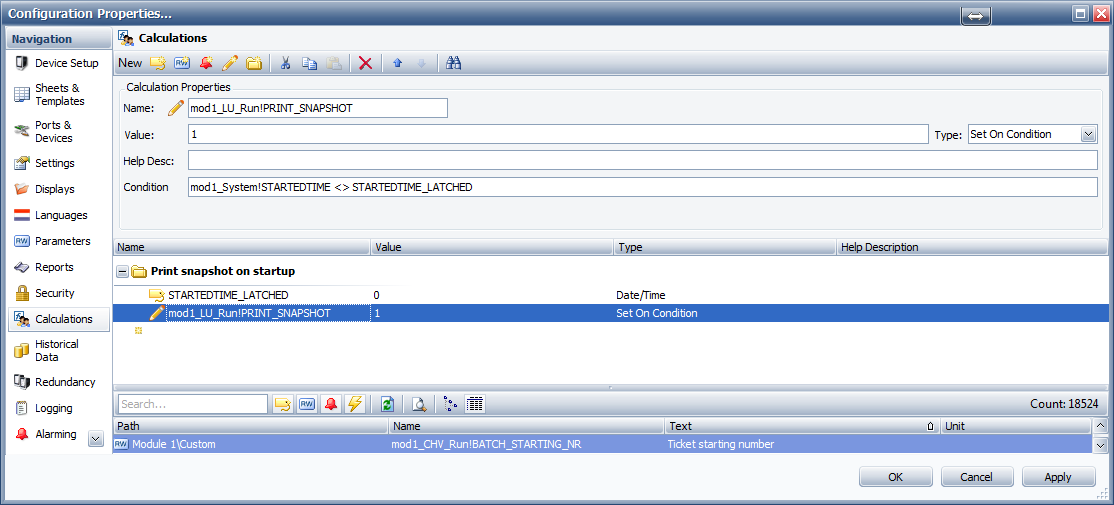

- Give print snapshot report command
Activate the print command when actual started time differs from the latched started time.
Latch the new started time
